- JDCE36 Series
- Sensing method Magnetic
- Functional principle Multiturn
- Housing size Φ36.5mm
- Solid shaft Φ10mm
- Max. Resolution 28Bit
- Steps per turn 16384/14Bit
- Number of turn 16384/14Bit
- Interface CANopen
- Supply voltage 10-30VDC
- Protection IP67
Shaft diameterSolid shaft Φ10mm
ProtectionIP67
Rotatinal speed4000 rpm
Shaft loadingMax. 180N Axial；Max. 180N Radial
Shock resistance100g，6ms
Vibration resistance10g，10...2000Hz
Material316L（Stainless steel）
Shell material316L（不銹鋼）
Operating temperature-40℃...+85℃
Storage temperature-40℃...+85℃
Weight≈180g

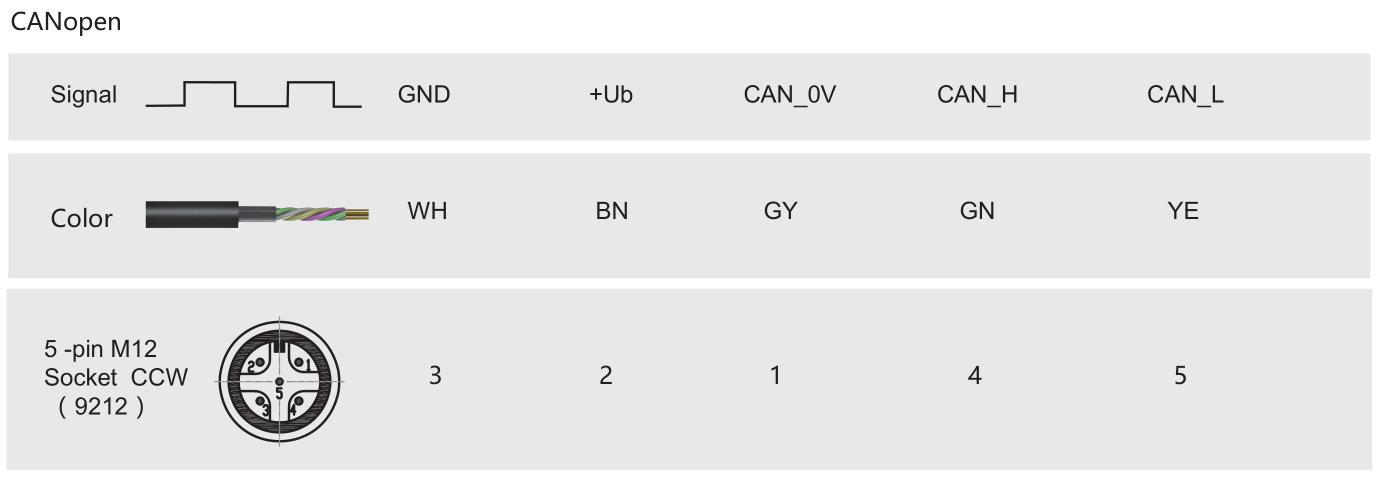

Wiring methodM12 radial socket（5-pin CCW）
Supply voltage10...30VDC
No-load current＜60mA
InterfaceCANopen
Transmission rateMax 1MBit/s
CodeBinary
Baud rateProgrammable setting，The default is 125kbit/s
The node addressProgrammable setting，The default node ID is 20H
Counting directionProgrammable setting
Anti-interferenceEN61000-6-2
Launch interferenceEN 61000-6-4
Circuit protectionSurge protection, Reverse polarity protection, ESD protection
Ordering example：JDCE36S10B1213S90T10-30R2
| File name | 文件類型 | File thumbnail | File size | Download link |
|---|---|---|---|---|
| JDCE36S-CANopen Series | 0.00 M |  |
