ESK50S Series
Sensing method Optical
Housing size Φ50 mm
Shaft diameter Φ6、Φ8 mm
Shaft with keyway diameter Φ25 mm
Max. resolution 1200 PPR
Supply voltage 5VDC，5-30VDC，9-26VDC
Protection IP54/IP65
ESK50S Series
Sensing method Optical
Housing size Φ50 mm
Shaft diameter Φ6、Φ8 mm
Shaft with keyway diameter Φ25 mm
Max. resolution 1200 PPR
Supply voltage 5VDC，5-30VDC，9-26VDC
Protection IP54/IP65
Shaft diameter Solid shaft Φ6、Φ8 mm
Sensing methodOptical
Max. resolution1200PPR
Supply voltage 5VDC,5-30VDC,9-26VDC
ProtectionIP54/IP65
Speed6000RPM
Shaft loadingMax. 40N Axial；Max. 80N Radial
Shock resistance100g，6ms
Vibration resistance10g，10...2000 HZ
Starting torque<0.01 Nm
MaterialsSolid shaft ：Stainless steel
Flange ：Aluminum alloy
Housing：Tensile iron shell +Black painted
Working temperature-40 ℃…+85 ℃
Storage temperature-40 ℃…+85 ℃
WeightApprox. 200g( Cable 2m)

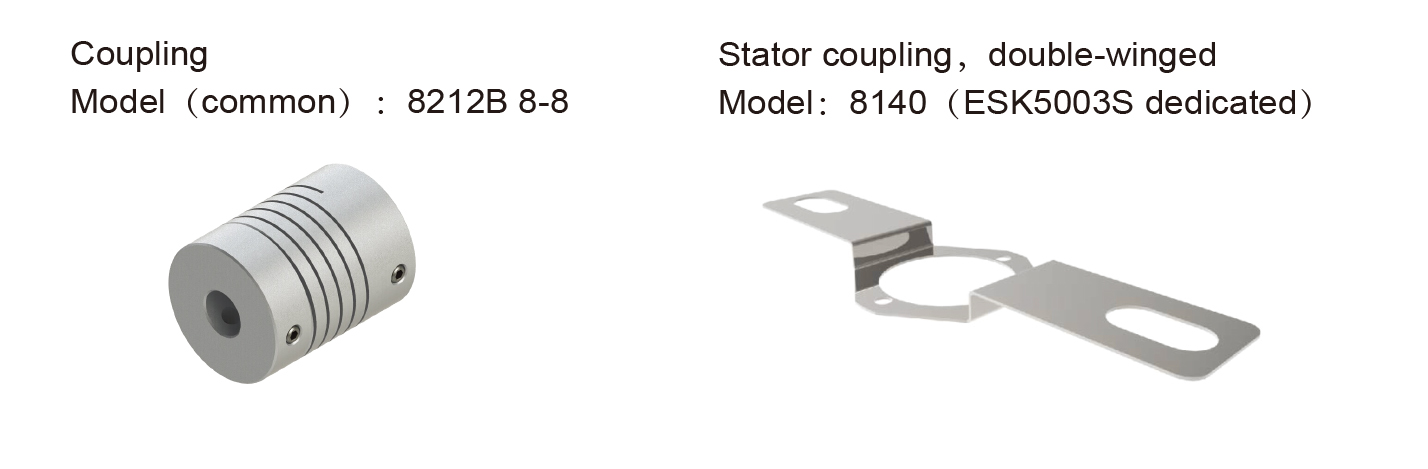

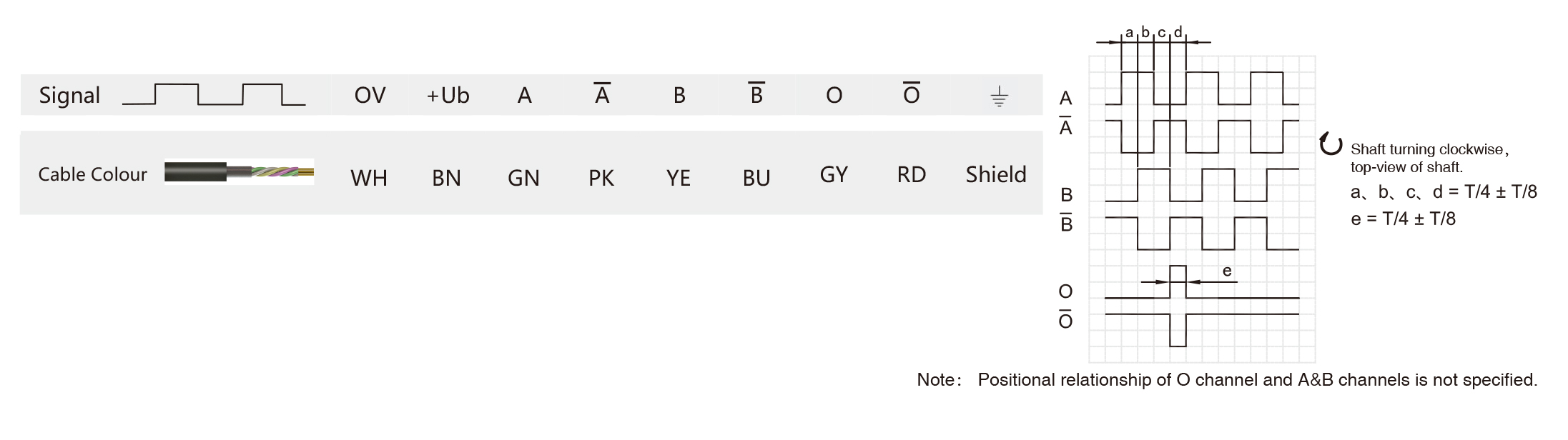

Output circuit Push-Pull
Push-Pull Differential
Voltage
Open Collector
RS422（TTL Compatible）
Pulse rateMax.1200 P/R
Supply voltage 5-30V
Power consumption(no load)Max. 125 mA
Permissible load/channel Max.±80mA
Pulse frequency Max.100 KHz
Signal level high Min.Ub-1.5V
min.Ub-2.5V
Signal level low Max. 0.8V
Rise time Tr Max. 1μs
Fall time TfMax. 1μs
Short circuit proof outputs Yes
Ordering example：ESG50S8E1024A5-30R2
| File name | 文件類型 | File thumbnail | File size | Download link |
|---|---|---|---|---|
| ESK50S Series Incremental Encoder | 3.09 M |  |
