- ESK100H Series
- Sensing method Optical
- Housing size Φ101 mm
- Hollow shaft diameter Φ30、Φ35、Φ38、Φ40、Φ42、Φ45 mm
- Max. resolution 3000 PPR
- Supply voltage 5VDC，5-30VDC，9-26VDC
- Protection IP54/IP65
Shaft diameter Φ30、Φ35、Φ38、Φ40、Φ42、Φ45 mm
ProtectionIP54 /IP65
Speed3000
Shaft loadingMax. 100 N Axial ； Max. 200 N Radial
Shock resistance100g，6ms
Vibration resistance10g，10...2000HZ
Starting torque<0.1Nm
MaterialsHollow shaft ：Stainless steel
Flange ：Aluminum alloy
Housing：Aluminum alloy
Working temperature-40℃…+85℃
Storage temperature-40℃…+85℃
WeightApprox. 1kg ( Cable2m)
Output circuit Push-Pull
Push-Pull Differential
Voltage
Open Collector
RS422（TTL Compatible）
Pulse rateMax. 3000P/R
Supply voltage 5-30V
Power consumption(no load)Max. 125 mA
Permissible load/channel Max. ±80 mA
Pulse frequency Max.100 KHz
Signal level high Min. Ub-2.5V
Signal level low Max. 0.8V
Rise time Tr Max. 1μs
Fall time TfMax. 1μs
Short circuit proof outputs Yes

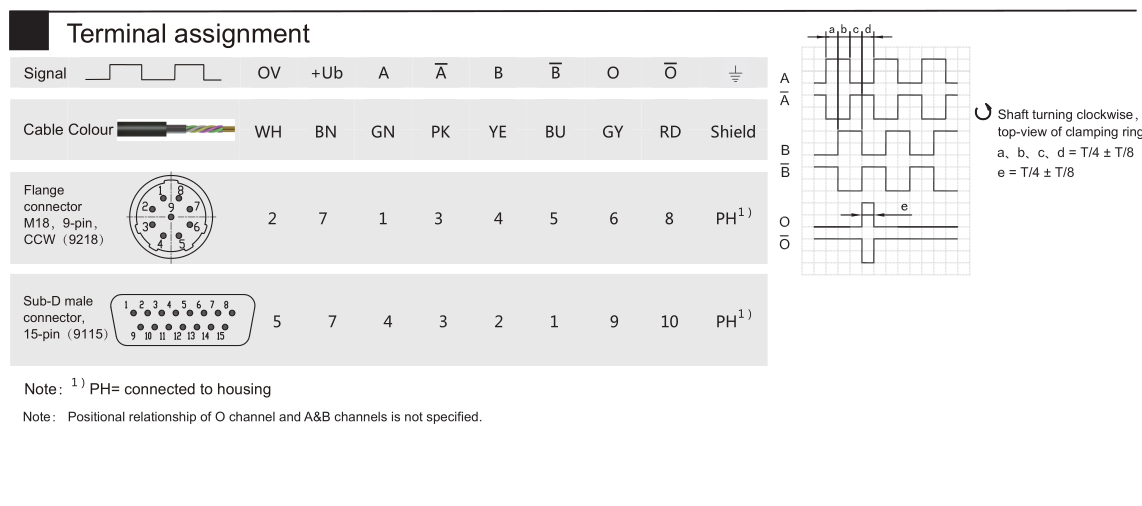

Ordering example：ESK100H45E3000A5-30R9115
械圖.jpg)
| File name | 文件類(lèi)型 | File thumbnail | File size | Download link |
|---|---|---|---|---|
| ESK100H Series Incremental Encoder | 0.46 M |  |
