- ESG90H Series
- Sensing method Optical
- Housing size Φ90 mm
- Hollow shaft diameter Φ20、Φ25、Φ30 mm
- Max. resolution 5000 PPR
- Supply voltage 5VDC，5-30VDC，9-26VDC
- Protection IP54/IP65
Shaft diameter Hollow shaft Φ20、Φ25、Φ30mm
Sensing methodOptical
Max. resolution≤ 5000 PPR
Supply voltage 5VDC，5-30VDC，9-26VDC
ProtectionIP65
Speed3500RPM
Shaft loadingMax.40N Axial ； Max. 80N Radial
Shock resistance100g，6ms
Vibration resistance10g，10...2000HZ
Starting torque<0.05Nm
MaterialsHollow shaft：Stainless steel
Housing：Aluminum alloy
Working temperature-20℃…+70℃
Storage temperature-40℃…+85℃
WeightApprox. 850g

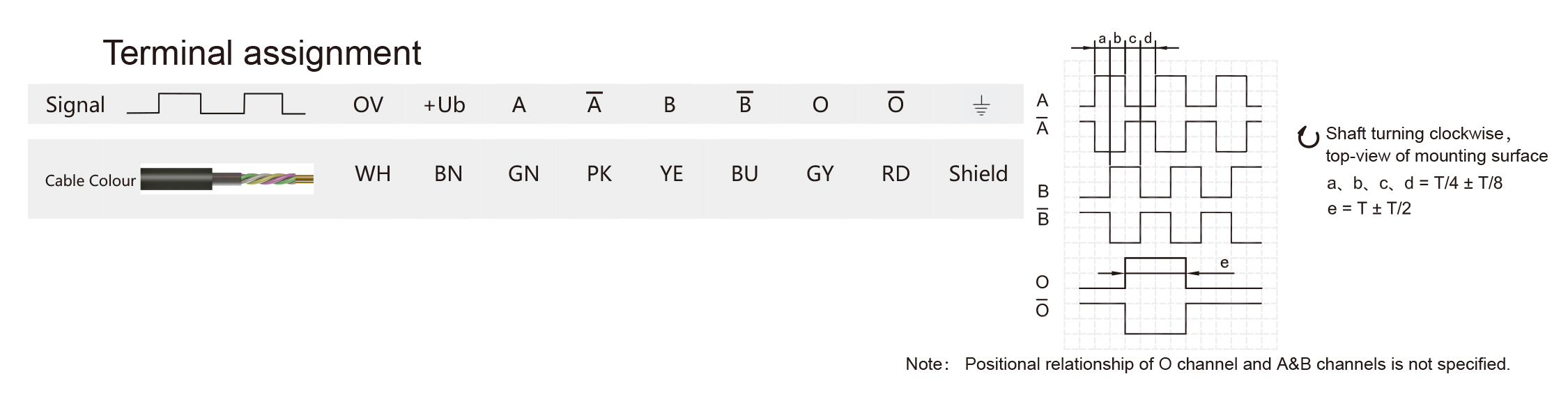

Output circuit Push-Pull
Push-Pull Differential
Voltage
Open Collector
RS422（TTL Compatible）
Pulse rateMax. 5000 P/R
Supply voltage 5-30V
Power consumption(no load)Max. 125 mA
Permissible load/channel Max. ±80 mA
Pulse frequency Max.300 KHz
Signal level high Min. Ub-2.5V
Signal level low Max. 0.8V
Rise time Tr Max. 1μs
Fall time TfMax. 1μs
Short circuit proof outputs Yes

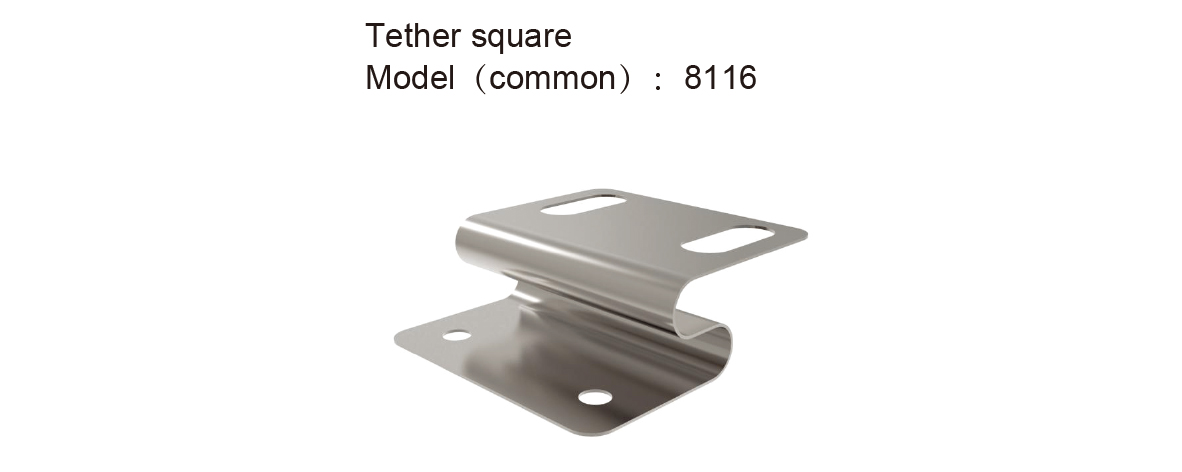

Ordering example：
