- EHK90SK series
- Sensing method optical
- Housing size Φ90mm
- Solid keyway shaft Φ11、Φ12、Φ15
- Max. resolution 2500PPR
- Supply voltage 5VDC，5-30VDC，9-26VDC
- Protection IP65/IP67
Shaft diametersolid keyway shaft Φ11、Φ12、Φ15mm
ProtectionIP65/IP67
Speed6000RPM
Shaft loadingMax. 70 N Axial；Max. 140 N Radial
Shock resistance100g，3ms
Vibration resistance10g，10...2000HZ
Starting torque<0.1Nm
MaterialsMaterials Flange ：Stainless steel
Solid shaft ：Aluminium alloy
Housing：Aluminium alloy
Working temperature-40℃…+85℃
Storage temperature-40℃…+85℃
WeightApprox.1kg（Cable 2m）

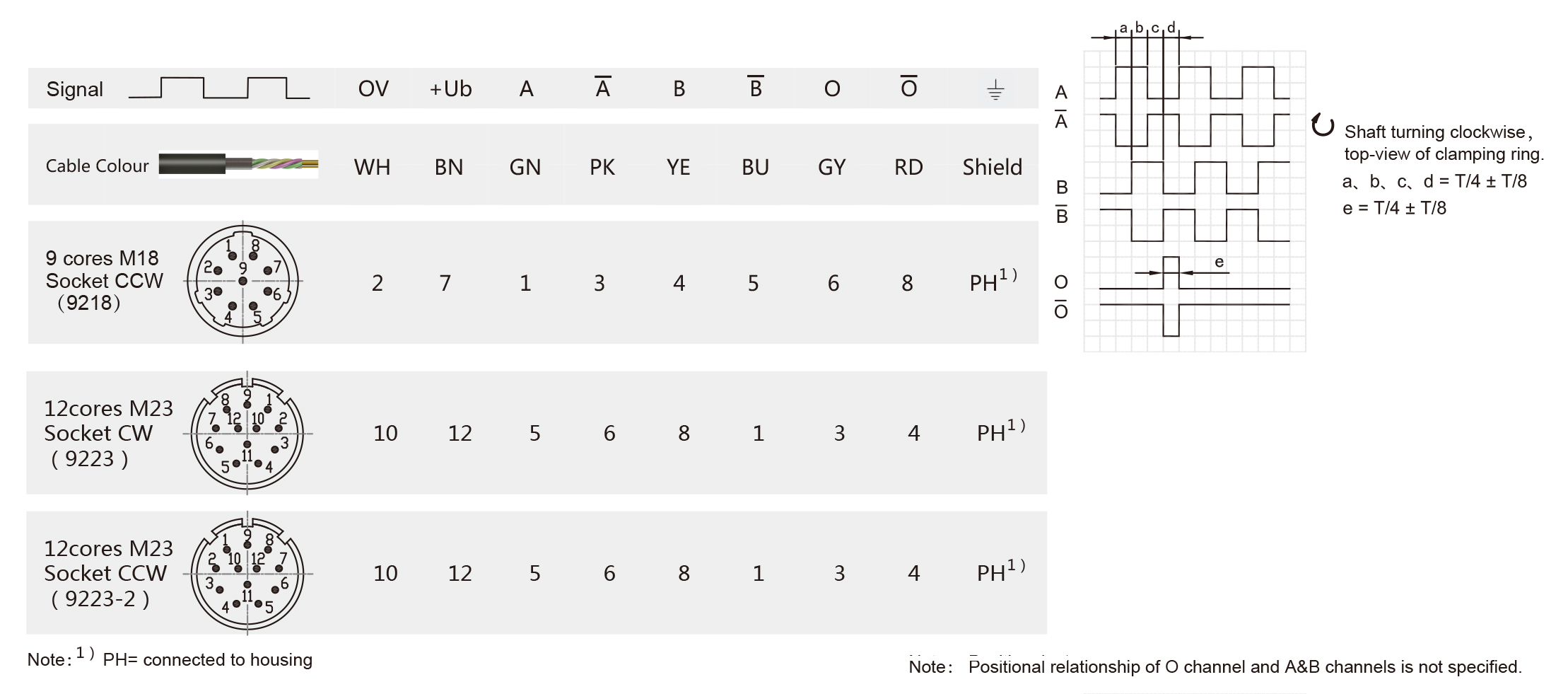

Output circuitPush-Pull
Pulse rateMax. 2048P/R
Supply voltage5-30V
Power consumption(no load)Max. 80 mA
Permissible load/channel Max. ± 30mA
Pulse frequency Max. 100 KHz
Signal level highMin. Ub-2.5V
Signal level lowMax. 0.8V
Rise time TrMax. 1 μs
Fall time Tf Max. 1 μs
Short circuit proof outputsYes
Ordering example：EHK90SK12C1024F5-30R2
