ECK38S Series
Sensing method Optical
Housing size Φ38mm
Shaft diameter Φ6mm
Max. resolution 600PPR
Supply voltage 9-26VDC
Protection IP54
ECK38S Series
Sensing method Optical
Housing size Φ38mm
Shaft diameter Φ6mm
Max. resolution 600PPR
Supply voltage 9-26VDC
Protection IP54
Shaft diameter Solid shaft Φ6mm
Sensing methodOptical
Max. resolution600PPR
Supply voltage 5VDC,5-30VDC,9-26VDC
ProtectionIP54
Speed6000RPM
Shaft loadingMax. 20N Axial；Max. 40N Radial
Shock resistance50g，6ms
Vibration resistance10g，10...2000HZ
Starting torque<0.005Nm
Solid shaft Stainless steel
FlangeAluminum alloy
HousingTensile iron shell +Black painted
Working temperature0~+60℃
Storage temperature-40~+70℃
Weight≈ 83g

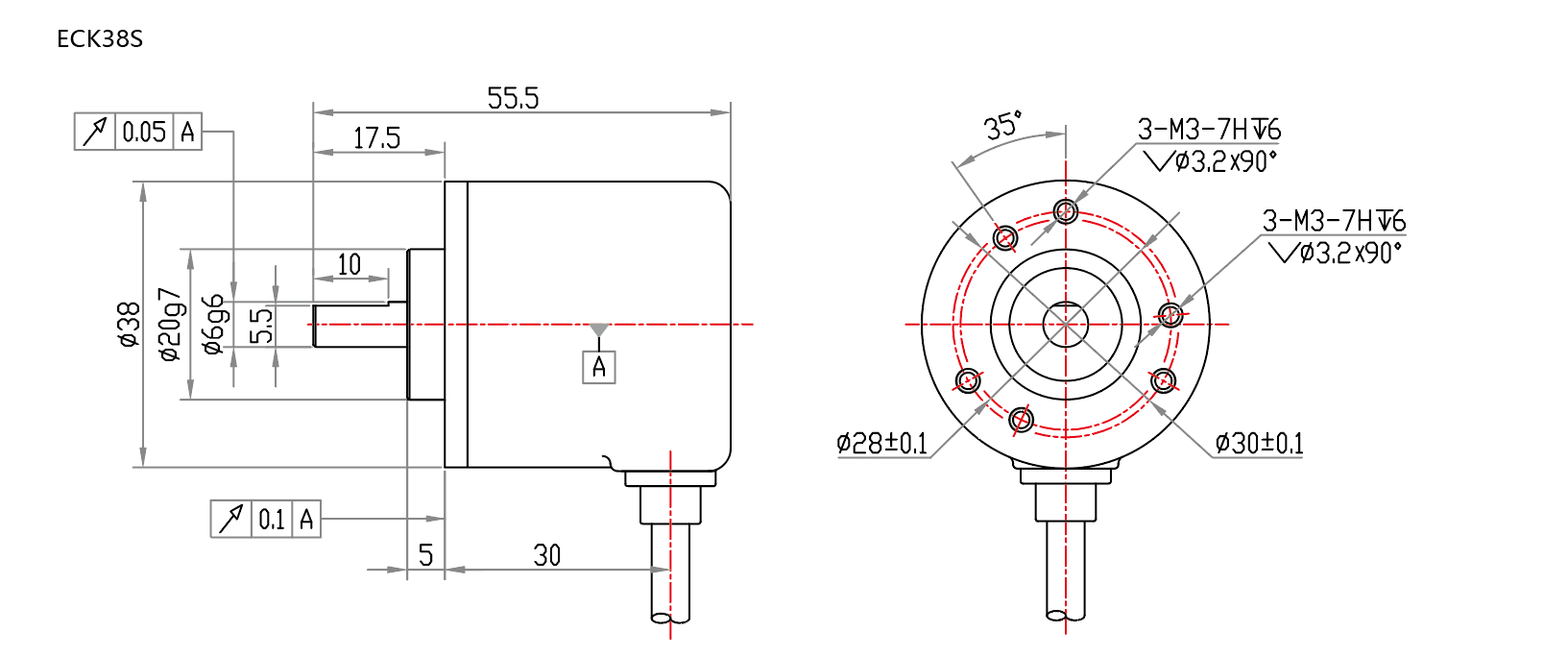

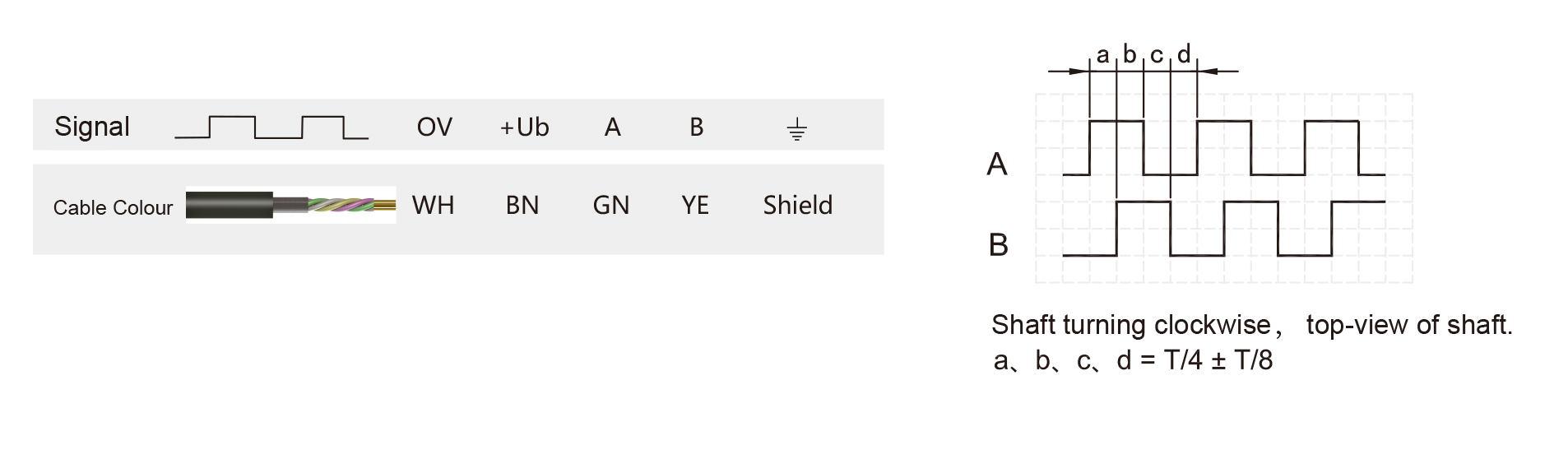

Output circuit
Pulse rate
Supply voltage
Power consumption(no load)
Permissible load/channel
Pulse frequency
Signal level high
Signal level low
Rise time Tr
Fall time Tf

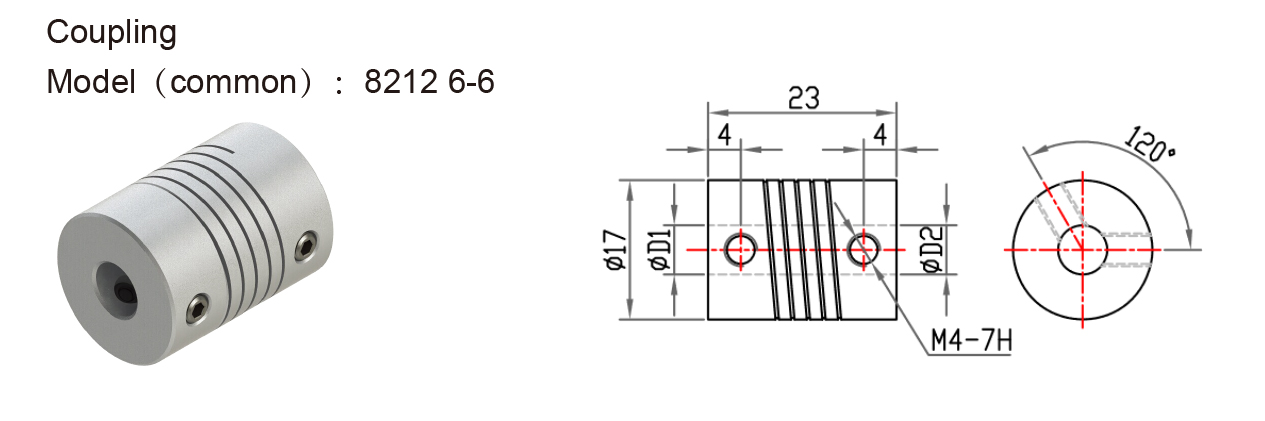

Ordering example：ECK38S6B600F9-26R2
| File name | 文件類型 | File thumbnail | File size | Download link |
|---|---|---|---|---|
| ECK38S Series Incremental Encoder | 2.41 M |  |
